Products By Type, Market
Although switching was our first product and is our core competency, many additional synergistic products have been developed over the years such as distribution amplifiers, power dividers, multi-couplers, attenuators, protocol converters, and fiber optic interfaces. Since our first solid-state six-level 8x8 product in 1992, we have continued to clear away the technical boundaries of automated signal switching, distribution and automation. Shown in the table below are our various types of products grouped into application profiles or product type.
| Video Matrices, Switches, Distribution | Telemetry Products | Test & Evaluation |
|
-- Clock & Data | -- Multi-purpose Switches |
| -- Analog Video (NTSC, PAL, CCTV) | -- PCM, TTL, 422 | -- Coaxial Relay Modules (70000) |
| -- RS530 | -- High Isolation | |
| RF Matrices & Switches | -- Line & Dist Amps | -- Precision Instrumentation Matrix |
| -- HF & RF (1-32MHz) | -- Hybrid | -- Bench-top |
| -- IF Band (40-200MHz) | -- Low MTTR Matrix (DC-18GHz) | |
| -- L-Band (850-2450MHz) | Distribution Amps & Multicouplers | |
| -- Wideband (20-3000GHz) | -- Digital (TTL, ECL, '422, RS530) | Command, Control & Timing |
| -- Xtreme Widedand (20MHz-6GHz) | -- Analog Video (DC-150MHz) | -- Clock & Data Matrix |
| -- Microwave (DC-18GHz, 50GHz, 67GHz) | -- Lband (20MHz-2450MHz) | -- Data Distribution |
| -- Redundancy Switching | -- RF Multicouplers (1.5MHz-5500MHz) | -- MIL 1553 Switch |
| -- Digital Video (UHD-SDI, 8K, 4K) | -- RS530 Satellite Modem Matrix | |
| Fiber Transport & LNB Control | -- Baseband analog | See products by model number instead. |
| -- RF Over Fiber | -- Protocol conversion (TTL/422) | Satellite RF Chain Diagram (PDF) |
| -- LNB Power & Control | ||
| Controllers, Software GUI | ||

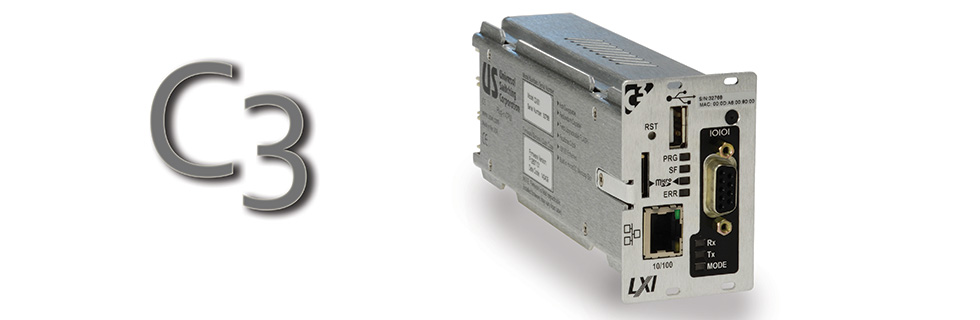

| -- C3 Controller | ||
| -- MAC4 Master Array Controller | ||
| -- Drivers & LabVIEW |
Video Products (Matrix & Switches, Digital and Analog)
| Model |
Description of Function |
Max Config | Conn |
Size |
||
|---|---|---|---|---|---|---|
| G2T Series | 8x8 to 64x64 Analog Video (125MHz), modular product family to build complete systems from a variety of available modules including analog video, but can mix with other modules spanning DC-67GHz (2RU to 16RU) |
64x64 | BNC |
Module |  |
|
| HDVMU1-08-6G2 |  |
8x1 Digital Video Mux, UHD-SDI, HD-SDI, SD-SDI (270Mbps to 5.94Gbps) PDF | 8x1 | BNC | 1RU |  |
| HDVMU1-16-6G2 | |
16x1 HD Digital Video Mux, UHD-SDI, HD-SDI, SD-SDI (270Mbps to 5.94Gbps) PDF | 16x1 | BNC | 1RU |  |
| HDVSU1-3216 | |
16x16 HD Digital Video Matrix, HD-SDI, SD-SDI (270Mbps to 2.97Gbps), redundant supplies | 16x16 | BNC | 1RU |  |
| HDVSU2-6432 | 32x32 HD Digital Video Matrix, HD-SDI, SD-SDI (270Mbps to 2.97Gbps), redundant supplies | 32x32 | BNC | 2RU |  |
|
| LS16A |  |
1x6 Analog & Digital modular product with some 1xN modules available, redundant supplies | 1x6 | BNC | 3RU |  |
| MDU4 | |
1x1, 1x2, 1x4, 1x8, 1x16 Modular Distribution & Conversion RF Distribution: Quad element modular distribution unit, redundant supplies |
1x16 | BNC SMA |
1RU |  |
| VSU1-3216 | 16x16 Analog Video Matrix, DC-300MHz, 75 ohm | 16x16 | BNC | 1RU |  |
|
| VSU1H-3216 | 16x16 Analog Video Matrix, DC-75MHz, 75 ohm (50 option), TTL and PCM (high level) | 16x16 | BNC | 1RU | |
|
| VSU2-6432 | 32x32 Analog Video Matrix, DC-300MHz, 75 ohm | 32x32 | BNC | 2RU | |
|
| VSU2H-6432 | 32x32 Analog Video Matrix, DC-75MHz, 75 ohm (50 option), TTL and PCM (high level) | 32x32 | BNC | 2RU | |
|
| RouteWarePRO | |
Control Software Version 5.0 Free 30-Day Trial |
Control Software |
Triax RJ45 Dsub |
N/A |  |
RF Matrix & Switches
Satellite RF Chain Diagram (PDF)
| Model |
Description of Function |
Max Config |
Conn |
Size |
||
|---|---|---|---|---|---|---|
| G2T Series | Modular product family to build complete systems from a variety of available modules to mix & match with other modules spanning DC-40GHz (2RU to 16RU) | 64x64 | BNC N-Type |
Module | |
|
| G2T-CAS Series | CAS = Critical Application System RF Matrix, customizable modular product family to build complete system for rugged high-reliability applications supporting digital, IF, L-band and others up to DC-40GHz |
48x128 | SMA N-Type |
Module |  |
|
| LS16A | |
Analog & Digital modular product with up to 16 plug-in elements for distribution, conversion and switching available including RF-Over-Fiber, redundant supplies | 1x6 | BNC SMA |
3RU | |
| MCU1 | |
Single 1x4 or 1x8, and Dual 1x4 or 1x8 RF Multicoupler (distribution) HF, RF, IF, L, S, C-Band (1.5MHz to 5500MHz) |
Dual 1x8 |
SMA N-Type |
1RU |  |
| MDU4 | |
1x1, 1x2, 1x4, 1x8, 1x16 Modular Distribution & Conversion, and Multicoupler RF Distribution: Quad element modular distribution unit, redundant supplies |
1x16 | BNC SMA |
1RU | |
| MS2010A | 4x4 to 12x12 Wideband Matrix, DC-18GHz, 1:1 connectivity, low MTTR, redundant supplies |
12x12 | SMA N-Type |
2RU |  |
|
| MS2102A | |
Single 2x10 to 2x100, Dual 2x50 Wideband Multiplexer, DC-18GHz, 1:1 connectivity, low MTTR, redundant supplies optional |
Single 1x100 Dual 1x50 |
SMA |
2RU |  |
| RSX4 | |
1x2

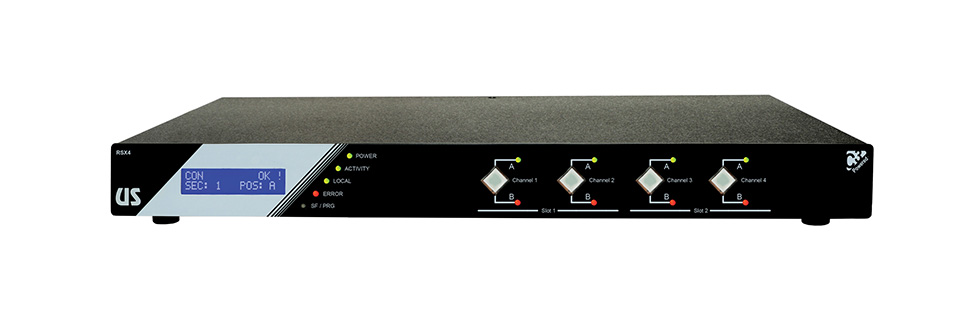

Redundancy Configurable for ASI, IF, L-Band, and DC-67GHz, plug-in elements, redundant supplies |
Quad 1x2 |
BNC SMA |
1RU |  |
| SFM32 | |
4x4 to 32x32
Modular FIFO L-Band Matrix (850-2450MHz), FIFO (FanIN & FanOUT), single port expansion, redundant supplies |
32x32 | BNC SMA F-Type |
6RU |  |
| SGM24 | |
Up to 48 I/O Port Distributive Matrix Ultra-Wideband Matrix (20-6000GHz), FanOUT (distributive), factory configured size, redundant supplies |
24x24 16x32 |
SMA
|
2RU |  |
| SIM32 | |
4x4 to 32x32
Modular IF Matrix (40-250MHz), FanOUT (distributive), single port expansion, redundant supplies |
32x32 | BNC SMA F-Type |
6RU | |
| SIM32i | |
4x4 to 32x32
Modular IF Matrix (40-250MHz), FanIN (combining), single port expansion, redundant supplies |
32x32 | BNC SMA F-Type |
6RU | |
| SGM24 | |
Up to 48 I/O Port Distributive Matrix Ultra-Wideband Matrix (20-6000GHz), FanOUT (distributive), factory configured size, redundant supplies |
24x24 16x32 |
SMA
|
2RU | |
| SLM16 | |
16x16 Matrix L-Band Matrix (850-2450MHz), FanOUT (distributive), factory configured size, redundant supplies |
16x16 | BNC SMA F-Type |
1RU |  |
| SLM16i | |
16x16 Matrix L-Band Matrix (850-2450MHz), FanIN (combining), factory configured size, redundant supplies |
16x16 | BNC SMA F-Type |
1RU | |
| SLM32 | |
4x4 to 32x32
Modular L-Band Matrix (850-2450MHz), FanOUT (distributive), single port expansion, redundant supplies |
32x32 | BNC SMA F-Type |
6RU | |
| SLM32i | |
4x4 to 32x32
Modular L-Band Matrix (850-2450MHz), FanIN (combining), single port expansion, redundant supplies |
32x32 | BNC SMA F-Type |
6RU | |
| SWM16 | |
16x16 Matrix Wideband Matrix (20-3000MHz), FanOUT (distributive) or FanIN, factory configured size, redundant supplies |
8x8 8x16 16x16 |
BNC SMA |
1RU | |
| SWM16i | |
16x16 Matrix Wideband Matrix (20-3000MHz), FanIN (combining), factory configured size, redundant supplies |
16x16 | BNC SMA |
1RU | |
| SWM16X | |
4x16 to 16x16 Modular Wideband Matrix (20-3000MHz), FanOUT (distributive), factory configured size or field upgradeable, redundant supplies, redundant CPU |
4x16 to 16x16 |
N-Type | 4RU |  |
| SWM24 | |
Up to 48 I/O Port Distributive Matrix Wideband Matrix (20-3000GHz), FanOUT (distributive), factory configured size, redundant supplies |
24x24 16x32 8x40 |
BNC SMA F-Type |
2RU |  |
| SWM24i | |
Up to 48 I/O Port Combining Matrix Wideband Matrix (20-3000GHz), FanIN (combining), factory configured size, redundant supplies |
40x8 24x24 32x16 |
BNC SMA |
2RU | |
| SWM32 | |
4x4 to 32x32 Modular Wideband Matrix (20-3000MHz), FanOUT (distributive), single port expansion, redundant supplies |
32x32 | BNC SMA F-Type |
6RU | |
| SWM32i | |
4x4 to 32x32 Modular Wideband Matrix (20-3000MHz), FanIN (combining), single port expansion, redundant supplies |
32x32 | BNC SMA F-Type |
6RU | |
| UC1 | |
Modular PUC System 1RU Universal Chassis that accepts up to two "PUCs" for switching or instrumentation, DC-67GHz capability, redundant supplies |
PUC Dependent |
BNC SMA Triax |
1RU |  |
| U70000 |  |
Rugged 1xN Relay Modules (DC-800MHz): Coaxial, Triax, SMA, Twinax, TNC connectors PDF DC controlled relay. Operations Manual |
1x24 | BNC SMA Triax |
Module |  |
| URS70000 | |
Rugged 1xN Relay Modules (DC-800MHz): : Coaxial, Triax, SMA, Twinax, TNC connectors PDF Serial control port (RS-232C) Operations Manual |
1x24 | BNC SMA Triax |
Module |  |
| RouteWarePRO | |
Control Software Version 5.0 Free 30-Day Trial |
Control Software |
Triax RJ45 Dsub |
N/A | |
Telemetry Products
| Model |
Description of Function |
Max Config | Conn |
Size |
||
|---|---|---|---|---|---|---|
| G2T Series | Modular product family to build complete systems from a variety of available modules to mix & match with other modules spanning DC-67GHz (2RU to 16RU) | 64x64 | BNC |
Module | |
|
| LS16A | |
Analog & Digital modular product with up to 16 plug-in elements for distribution, conversion and switching available including RF-Over-Fiber, redundant supplies | 1x6 | BNC SMA |
3RU | |
| MDU4 | |
1x2, 1x4, 1x8, 1x16 Modular Distribution & Conversion TTL, PCM, ECL, HD-SDI Video, 422, RF: Quad element modular distribution unit, redundant supplies |
1x16 | BNC SMA Triax |
1RU | |
| S2560F | |
32x32 to 256x256
Modular Digital Matrix (>50Mbps), FanOUT (distributive), differential (422), redundant supplies 512x512 design capability, uses adapter panels for TTL or PCM |
256x256 | Triax RJ45 Dsub |
5RU |  |
| S2561F | |
32x32 to 256x256
Modular Analog Matrix (DC-125MHz), FanOUT (distributive), single-ended, redundant supplies 512x512 design capability |
256x256 | BNC | 5RU | |
| S2565F | |
8x8 to 64x64
Modular Hybrid Digital (TTL or 422) & Analog Matrix (DC-125MHz / 60Mbps), FanOUT (distributive), BNC/Triax, redundant supplies (no adapter panels needed) |
256x256 | BNC Triax |
5RU | |
| S2566F | |
32x32 to 256x256
Modular Hybrid Digital & Analog Matrix (DC-125MHz), FanOUT (distributive), digital differential and analog single-ended, redundant supplies, 512x512 design capability |
256x256 | BNC | 5RU | |
| S5120F | |
64x64 to 512x512
Modular Digital Matrix (>40Mbps), FanOUT (distributive), differential (422), redundant supplies 1024x1024 design capability, uses adapter panels for TTL or PCM |
512x512 (1024x1024) |
Triax RJ45 Dsub BNC |
5RU |  |
| RouteWarePRO | |
Control Software Version 5.0 Free 30-Day Trial |
Control Software |
Triax RJ45 Dsub |
N/A | |
Distribution Amp & Multicoupler
| Model |
Description of Function |
Max Config | Conn |
Size |
||
|---|---|---|---|---|---|---|
| DDU32 | Dual 1x32 digital distribution & trigger unit (3Gbps), precision skew, LVTTL, ECL, PECL, LVPECL, LVDS | Dual 1x32 |
SMC | 1RU |  |
|
| LS16A | |
Analog & Digital modular product with up to 16 plug-in elements for distribution, conversion and switching available including RF-Over-Fiber, redundant supplies | 1x6 | BNC | 3RU | |
| MCU1 | |
Single 1x4 or 1x8, and Dual 1x4 or 1x8 RF Multicoupler (distribution) HF, RF, IF, L, S, C-Band (1.5MHz to 5500MHz) |
Dual 1x8 |
SMA N-Type |
1RU | |
| MDU4 | |
1x1, 1x2, 1x4, 1x8, 1x16 Modular Distribution & Conversion, and Multicoupler TTL, PCM, ECL, UHD-SDI Video, 422, RF: Quad element modular distribution unit, redundant supplies |
1x16 | BNC SMA Triax |
1RU | |
Command & Control
| Model |
Description of Function |
Max Config | Conn |
Size |
||
|---|---|---|---|---|---|---|
| DDU32 | Dual 1x32 digital distribution & trigger unit (3Gbps), precision skew, LVTTL, ECL, PECL, LVPECL, LVDS | Dual 1x32 |
SMC | 1RU | |
|
| G2T Series | Digital Matrix & Switches, modular product family to build complete systems from a variety of available modules including clock/data, TTL, RS422, & 1553 products, but also spanning signals DC-40GHz (2RU to 16RU) |
64x64 | BNC N-Type |
Module | |
|
| MDU4 | |
1x2, 1x4, 1x8, 1x16 Modular Distribution & Conversion TTL, PCM, ECL, Video, 422, RF: Quad element modular distribution unit, redundant supplies |
1x16 | BNC SMA Triax |
1RU | |
| S24530A | 3x3 to 24x24
Modular RS-530 Digital Matrix (50Mbps), DCE and DTE cards, reduced functions available, redundant supplies |
24x24 | DB25 | 5RU | |
|
| S2560F | |
32x32 to 256x256
Modular Digital Matrix (>50Mbps), FanOUT (distributive), differential, redundant supplies 1024x1024 design capability |
256x256 | BNC RJ45 Dsub |
5RU | |
| S2565F | |
8x8 to 64x64
Modular Hybrid Digital (TTL or 422) & Analog Matrix (DC-125MHz / 80Mbps), FanOUT (distributive), BNC/Triax, redundant supplies (no adapter panels needed) |
256x256 | BNC Triax Dsub |
5RU | |
| S64530 | 8x8 to 64x64
Modular RS-530 Digital Matrix (50Mbps), DCE and DTE cards, reduced functions available, redundant supplies |
64x64 | DB25 | 5RU | |
|
| TS264B | Dual 32x32 and Dual 64x64 Matrix Digital "422" Matrix, FanOUT (distributive), dual (clock/data) differential, redundant supplies |
Dual 64x64 | Dsub RJ45 |
2RU |  |
|
| RouteWarePRO | |
Control Software Version 5.0 Free 30-Day Trial |
Control Software |
Triax RJ45 Dsub |
N/A | |
Test & Evaluation
| Model |
Description of Function |
Max Config | Conn |
Size |
||
|---|---|---|---|---|---|---|
| BS1553F | |
8x8 to 64x64
Modular MIL-STD-1553 Bus Switch Matrix (DC-125MHz), passive differential signals, redundant supplies 256x256 design capability |
64x64 | Triax | 5RU |  |
| E70000 | |
Rugged 1xN Relay Modules (DC-800MHz): Coaxial, Triax, SMA, Twinax, TNC connectors 10/100 Ethernet (LXI) controlled relay module. |
1x24 | BNC SMA Triax |
Module |  |
| G2T Series | Modular product family to build complete systems from a variety of available modules to mix & match with other modules spanning DC-67GHz (2RU to 16RU) | 64x64 | BNC |
2RU to 8RU |
|
|
| MS2010A | 4x4 to 12x12 Wideband Matrix, DC-18GHz, 1:1 connectivity, low MTTR, redundant supplies |
12x12 | SMA N-Type |
2RU | |
|
| MS2102A | |
Single 2x10 to 2x100, Dual 2x50 Wideband Multiplexer, DC-18GHz, 1:1 connectivity, low MTTR, redundant supplies optional |
Single 1x100 Dual 1x50 |
SMA |
2RU | |
| TS202A | |
64x64 Precision Instrumentation Matrix, DC-200kHz, differential input, single-ended output, switchable input grounding, redundant supplies, optional 1RU BNC panels |
64x64 | Dsub BNC |
2RU |  |
| UC1 | |
Modular PUC System 1RU Universal Chassis that accepts up to two "PUCs" for switching or instrumentation, DC-67GHz capability, redundant supplies |
PUC Dependent |
BNC SMA Triax |
1RU | |
| U70000 | |
Rugged 1xN Relay Modules (DC-800MHz): Coaxial, Triax, SMA, Twinax, TNC connectors DC controlled relay module. |
1x24 | BNC SMA Triax |
Module | |
| URS70000 | |
Rugged 1xN Relay Modules (DC-800MHz): : Coaxial, Triax, SMA, Twinax, TNC connectors Serial control port (RS-232C) |
1x24 | BNC SMA Triax |
Module | |
Fiber Transport
| Model |
Description of Function |
Max Config | Conn |
Size |
||
|---|---|---|---|---|---|---|
| LS16A | |
Analog & Digital modular product with up to 16 plug-in elements for distribution, conversion and switching available including RF-Over-Fiber, redundant supplies | 1x6 | BNC SMA |
3RU | |
Products By Model Number
Although switching was our first product and is our core competency, many additional synergistic products have been developed over the years such as distribution amplifiers, power dividers, multi-couplers, attenuators and fiber optic interfaces. Since our first solid-state six-level 8x8 product in 1992, we have continued to clear away the technical boundaries of automated signal switching, distribution and automation. Shown in the table below are has products by model number. You can use search to narrow what is shown.
| Model |
Description of Function |
Max Config |
Conn |
Size |
||
|---|---|---|---|---|---|---|
| BS1553F | |
8x8 to 64x64
Modular MIL-STD-1553 Bus Switch Matrix (DC-125MHz), passive differential signals, redundant supplies 256x256 design capability |
64x64 | Triax | 5RU | |
| DDU32 | Dual 1x32 digital distribution & trigger unit (3Gbps), precision skew, LVTTL, ECL, PECL, LVPECL, LVDS | Dual 1x32 |
SMC | 1RU | |
|
| E70000 | |
Rugged 1xN Relay Modules (DC-800MHz): Coaxial, Triax, SMA, Twinax, TNC connectors 10/100 Ethernet (LXI) controlled relay module. |
1x24 | BNC SMA Triax |
Module | |
| G2T Series | Modular product family to build complete systems from a variety of available modules to mix & match with other modules spanning DC-67GHz (2RU to 16RU) | 64x64 | BNC N-Type |
Module | |
|
| G2T-CAS Series | CAS = Critical Application System RF Matrix, customizable modular product family to build complete system for rugged high-reliability applications supporting digital, IF, L-band and others up to DC-40GHz |
48x128 | SMA N-Type |
Module | |
|
| HDVMU1-08-6G2 | |
8x1 HD Digital Video Mux, UHD-SDI, HD-SDI, SD-SDI (270Mbps to 5.94Gbps) PDF | 8x1 | BNC | 1RU | |
| HDVMU1-16-6G2 | |
16x1 HD Digital Video Mux, UHD-SDI, HD-SDI, SD-SDI (270Mbps to 5.94Gbps) PDF | 16x1 | BNC | 1RU | |
| HDVSU1-3216 | |
16x16 HD Digital Video Matrix, HD-SDI, SD-SDI (270Mbps to 2.97Gbps), redundant supplies | 16x16 | BNC | 1RU | |
| HDVSU2-6432 | 32x32 HD Digital Video Matrix, HD-SDI, SD-SDI (270Mbps to 2.97Gbps), redundant supplies | 32x32 | BNC | 2RU | |
|
| LS16A | |
1x6 Analog & Digital modular product with some 1xN modules available, redundant supplies | 1x6 | BNC | 3RU | |
| MAC4 | |
Master Array Controller Controls multi-unit configurations, or remote display an any unit |
N/A | N/A | 4RU |  |
| MCU1 | |
Single 1x4 or 1x8, and Dual 1x4 or 1x8, or Single 1x16 RF Multicoupler (distribution) HF, RF, IF, L, S, C-Band (1.5MHz to 5,500MHz) |
Dual 1x8 (1x16) |
SMA N-Type |
1RU | |
| MDU4 | |
1x2, 1x4, 1x8, 1x16 Modular Distribution & Conversion TTL, PCM, ECL, Video, 422, RF: Quad element modular distribution unit, redundant supplies |
1x16 | BNC SMA Triax |
1RU | |
| MS2010A | |
4x4 to 12x12 Wideband Matrix, DC-18GHz, 1:1 connectivity, low MTTR, redundant supplies |
12x12 | SMA N-Type |
2RU | |
| MS2102A | |
Single 2x10 to 2x100, Dual 2x50 Wideband Multiplexer, DC-18GHz, 1:1 connectivity, low MTTR, redundant supplies optional |
Single 1x100 Dual 1x50 |
SMA |
2RU | |
| RouteWarePRO | |
Control Software Version 5.0 Free 30-Day Trial |
Control Software |
Triax RJ45 Dsub |
N/A | |
| RSX4 | |
1x2
Redundancy Configurable for ASI, IF, L-Band, and DC-50GHz, plug-in elements, redundant supplies |
Quad 1x2 |
BNC SMA |
1RU | |
| S24530A | 3x3 to 24x24
Modular RS-530 Digital Matrix (50Mbps), DCE and DTE cards, reduced functions available, redundant supplies |
24x24 | DB25 | 5RU | |
|
| S2560F | |
32x32 to 256x256
Modular Digital Matrix (>50Mbps), FanOUT (distributive), differential (422), redundant supplies 1024x1024 design capability |
256x256 | Triax RJ45 Dsub |
5RU | |
| S2561F | |
32x32 to 256x256
Modular Analog Matrix (DC-125MHz), FanOUT (distributive), single-ended, redundant supplies 512x512 design capability |
256x256 | BNC | 5RU | |
| S2565F | |
8x8 to 64x64
Modular Hybrid Digital (TTL or 422) & Analog Matrix (DC-125MHz / 80Mbps), FanOUT (distributive), BNC/Triax, redundant supplies (no adapter panels needed) |
256x256 | BNC Triax Dsub |
5RU | |
| S2566F | |
32x32 to 256x256
Modular Hybrid Digital & Analog Matrix (DC-125MHz), FanOUT (distributive), digital differential and analog single-ended, redundant supplies, 512x512 design capability |
256x256 | BNC | 5RU | |
| S5120F | |
64x64 to 512x512
Modular Digital Matrix (>40Mbps), FanOUT (distributive), differential (422), redundant supplies 1024x1024 design capability, uses adapter panels for TTL or PCM |
512x512 (1024x1024) |
Triax RJ45 Dsub BNC |
5RU | |
| S64530 | 8x8 to 64x64
Modular RS-530 Digital Matrix (50Mbps), DCE and DTE cards, reduced functions available, redundant supplies |
64x64 | DB25 | 5RU | |
|
| SFM32 | |
4x4 to 32x32
Modular FIFO L-Band Matrix (850-2450MHz), FIFO (FanIN & FanOUT), single port expansion, redundant supplies |
32x32 | BNC SMA F-Type |
6RU | |
| SIM32 | |
4x4 to 32x32
Modular IF Matrix (40-250MHz), FanOUT (distributive), single port expansion, redundant supplies |
32x32 | BNC SMA |
6RU | |
| SGM24 | |
Up to 48 I/O Port Distributive Matrix Ultra-Wideband Matrix (20-6000GHz), FanOUT (distributive), factory configured size, redundant supplies |
24x24 16x32 |
SMA
|
2RU | |
| SIM32i | |
4x4 to 32x32
Modular IF Matrix (40-250MHz), FanIN (combining), single port expansion, redundant supplies |
32x32 | BNC SMA |
6RU | |
| SLM16 | |
16x16 Matrix L-Band Matrix (850-2450MHz), FanOUT (distributive), factory configured size, redundant supplies |
16x16 | BNC SMA |
1RU | |
| SLM16i | |
16x16 Matrix L-Band Matrix (850-2450MHz), FanIN (combining), factory configured size, redundant supplies |
16x16 | BNC SMA |
1RU | |
| SLM32 | |
4x4 to 32x32
Modular L-Band Matrix (850-2450MHz), FanOUT (distributive), single port expansion, redundant supplies |
32x32 | BNC SMA |
6RU | |
| SLM32i | |
4x4 to 32x32
Modular L-Band Matrix (850-2450MHz), FanIN (combining), single port expansion, redundant supplies |
32x32 | BNC SMA |
6RU | |
| SWM16 | |
16x16 Matrix Wideband Matrix (20-3000MHz), FanOUT (distributive), factory configured size, redundant supplies |
16x16 | BNC SMA |
1RU | |
| SWM16i | |
16x16 Matrix Wideband Matrix (20-3000MHz), FanIN (combining), factory configured size, redundant supplies |
16x16 | BNC SMA |
1RU | |
| SWM16X | |
4x16 to 16x16 Modular Wideband Matrix (20-3000MHz), FanOUT (distributive), factory configured size or field upgradeable, redundant supplies, redundant CPU |
4x16 to 16x16 |
N-Type | 4RU | |
| SWM24 | |
Up to 48 I/O Port Distributive Matrix Wideband Matrix (20-3000GHz), FanOUT (distributive), factory configured size, redundant supplies |
24x24 16x32 8x40 |
BNC SMA F-Type |
2RU | |
| SWM24i | |
Up to 48 I/O Port Combining Matrix Wideband Matrix (20-3000GHz), FanIN (combining), factory configured size, redundant supplies |
40x8 24x24 32x16 |
BNC SMA |
2RU | |
| SWM32 | |
4x4 to 32x32 Modular Wideband Matrix (20-3000MHz), FanOUT (distributive), single port expansion, redundant supplies |
32x32 | BNC SMA |
6RU | |
| SWM32i | |
4x4 to 32x32 Modular Wideband Matrix (20-3000MHz), FanIN (combining), single port expansion, redundant supplies |
32x32 | BNC SMA |
6RU | |
| TS202A | |
64x64 Precision Instrumentation Matrix, DC-200kHz, differential input, single-ended output, switchable input grounding, redundant supplies, optional 1RU BNC panels |
64x64 | Dsub BNC |
2RU | |
| TS264B | Dual 32x32 and Dual 64x64 Matrix Digital "422" Matrix, FanOUT (distributive), dual (clock/data) differential, redundant supplies |
Dual 64x64 | Dsub RJ45 |
2RU | |
|
| UC1 | |
Modular PUC System 1RU Universal Chassis that accepts up to two "PUCs" for switching or instrumentation, DC-67GHz capability, redundant supplies |
PUC Dependent |
BNC SMA Triax |
1RU | |
| U70000 | |
Rugged 1xN Relay Modules (DC-800MHz): Coaxial, Triax, SMA, Twinax, TNC connectors DC controlled relay module. |
1x24 | BNC SMA Triax |
Module | |
| URS70000 | |
Rugged 1xN Relay Modules (DC-800MHz): : Coaxial, Triax, SMA, Twinax, TNC connectors Serial control port (RS-232C) |
1x24 | BNC SMA Triax |
Module | |
| VSU1-3216 | 16x16 Analog Video Matrix, DC-300MHz, 75 ohm | 16x16 | BNC | 1RU | |
|
| VSU1H-3216 | 16x16 Analog Video Matrix, DC-75MHz, 75 ohm (50 option), TTL and PCM (high level) | 16x16 | BNC | 1RU | |
|
| VSU2-6432 | 32x32 Analog Video Matrix, DC-300MHz, 75 ohm | 32x32 | BNC | 2RU | |
|
| VSU2H-6432 | 32x32 Analog Video Matrix, DC-75MHz, 75 ohm (50 option), TTL and PCM (high level) | 32x32 | BNC | 2RU | |
