The BS1553F(X) is a modular passive DC coupled differential switching system. It is designed as an automated "patch panel" for interconnecting numerous MIL-STD-1553 devices, cables and hardware, or for routing other differential signals such as '422 clock/data or kelvin ATE measurements. The I/O capacity is scalable from a small 8x8, up to 64x64 in one 5RU unit.
Conceived to replace manual patching, this unique product is designed to switch other differential signals with <50Mhz bandpass besides MIL-STD-1553 signals. Our technical staff can help configure the exact system for your specific application.
Also, the BS1553F can be used for passive routing of differential '422 signals, or for ATE application where signal paths are differential.
Features
High reliability relay core technology
Support A-Bus & B-Bus simultaneously
Redundant signal paths (Tri-Stage)
Routes analog/digital signals up to 50MHz
LED indicator next to each I/O port
Connectors are BJ77 type
Self-terminating inputs and outputs (78 ohm)
Bidirectional signal path
Hot-swap module technology
Full access matrix with 1:1 connection
Internal automated stub-breaking design
Expandable configuration from 8x8 to 64x64
Multi-unit expansion to 256x256
Configurable with single or dual control CPUs
Store/Recall full or partial connectivity profiles
Built-in web browser
Remote control Ethernet, USB & serial ports
LXI 10/100/1G Ethernet with TCP/IP, SNMP, IPv4, IPv6
Command set is 488.2 compliant
Front panel color touchscreen display (4.3")
Optional 10.1" display (FX)
Rugged 5RU chassis (8.75”)
International AC power range
Self-monitoring hot-swap plug-in power supplies
Integrated rack mount design (19 inch)
Built-in chassis slide mounting (slides not included)
Certified CE EN61010 (LVD)
Applications

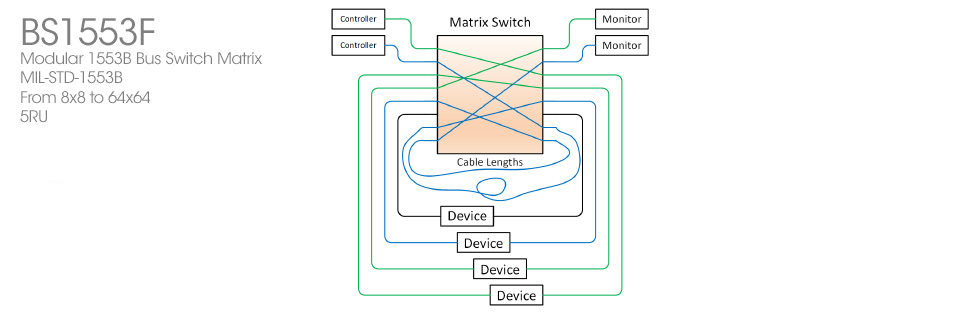

Our BS1553F is designed to automate connectivity of equipment with various signals.
Rather than using patch cords, the following installations may benefit from use of this product:
1553B Bus, '422 Modular Differential Switch Matrix
Up to 64x64, DC Coupled Passive Array
(50MHz)
Detailed Description
Eliminating manual patch bays and automating the connectivity of
MIL-STD-1553 hardware, the System BS1553F is the perfect tool for hardware configuration simulation in aircraft design labs and other similar applications.
NOTE:As a DC coupled passive differential switch matrix with internal stub-breaking technology, it can also be used effectively in automated test labs for many other signal types (digital or analog) requiring <50MHz bandpass.

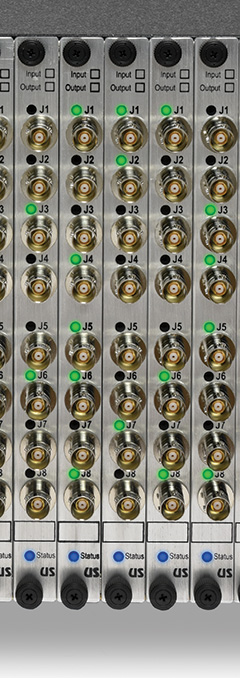

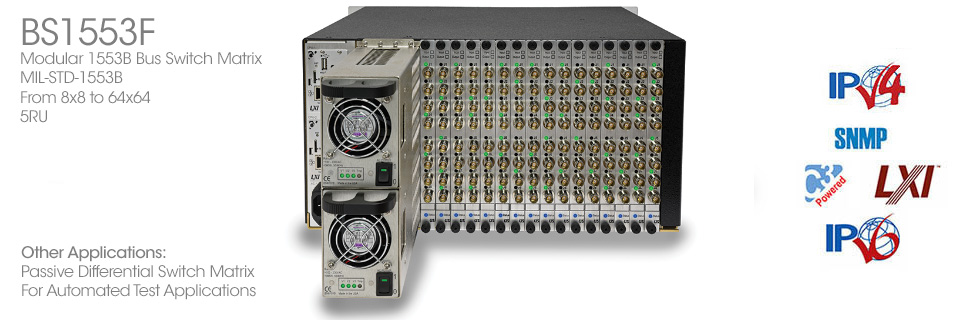

By design, the BS1553F can be easily configured to meet many automated needs, even as your requirements change and evolve. The 5RU rack mount unit accepts up to eight input cards and eight output cards at the rear with each I/O card having eight Triaxial (BJ77) connectors. These cards install at the rear of the unit with the connectors rear facing. The cards can specified with 78 or 100 ohm terminations, and the terminations are either automatic or can be user controlled. .
The unit can be configured as small as a 8x8matrix, to as large as a 64x64 matrix within the same unit by simply sliding in modules. For simplicity, same module type is used for either the input or output.
Either the input or output axis of the matrix can be configured independently in increments of 8 ports. All cards are secured to the unit with stainless hardware for rugged and trouble free operation. For less than fully populated configurations, filler plates complete the user configuration to keep the fan assisted cooling working at top efficiency.

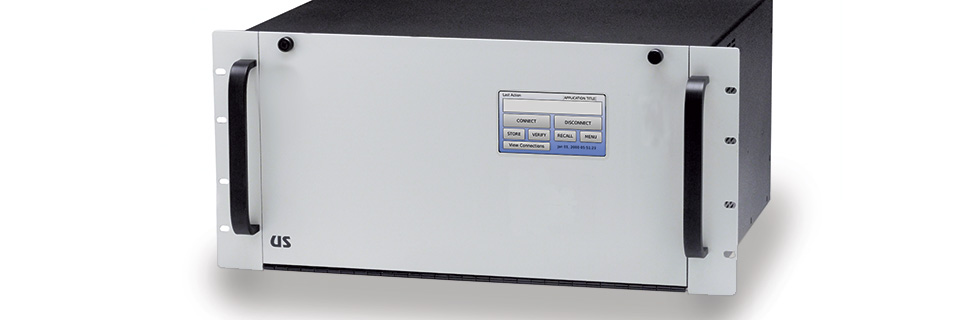

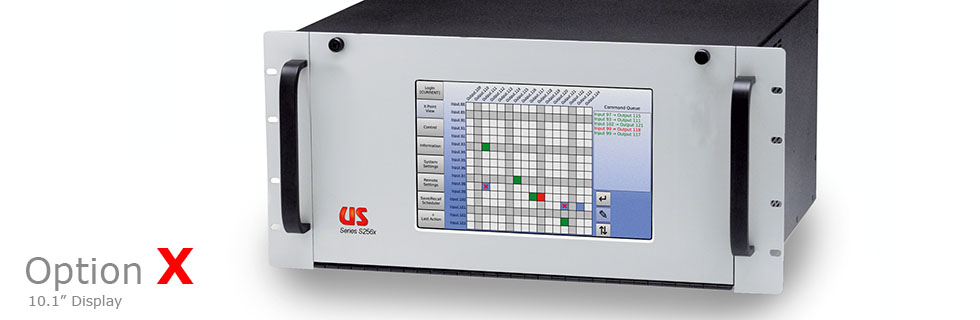

The front panel includes a color touchscreen display with user friendly menu driven operation. The "F" version has a 4.3" display while the "FX" includes a beautiful 10.1" display with additional X-Point control and display features. The display may be pass-code locked to prevent unintentional operation. Menu settings can configure the unit for dual port switching which might be desired for simultaneous A-Bus & B-Bus routing for a dual 32x32 in a single unit.
The unit can be configured with one or two (full redundant) hot-swappable plug-in control CPUs. Each CPU includes an LXI 10/100/1G Ethernet port (with web browser) muli-serial port (RS-232C, RS-422A & RS-485), and a hard contaat alarm port. Self-monitoring hot-swap plug-in power supplies are standard with an independent and redundant design. The unit has independent dual AC power inputs designed for any international AC power source.
The table below shows how many channels are available based on the number of input or output cards installed. You can independently populate input and output sections.
Input Cards
Channels
Output Cards
Channels
1
8
1
8
2
16
2
16
3
24
3
24
4
32
4
32
5
40
5
40
6
48
6
48
7
56
7
56
8
64
8
64
What's Included
The BS1553F units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:
System BS1553F
Two 6'-foot power cords
Resource disc (#RDBS1553F)
Hardware accessory kit
Lifetime technical support
Free firmware updates
Two power cords are provided as the unit comes standard with redundant (and independent) power supplies. Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
Universal Switching Corporation is an internationally recognized leader in the signal routing industry that manufactures leading-edge switching and distribution equipment.
Since 1992, the USC commitment to Continuous Process Improvement and cutting-edge technology has combined to provide a unique blend of low cost yet high quality products. With a corporate culture that includes a modern facility, talented personnel, a comprehensive Quality Management System and ISO 9001:2015 certification, USC provides a standard 2-Year warranty for all equipment and offers an optional extended 7-Year warranty.
