System SGM24 is a compact 2RU ultra-wideband switch matrix unit designed for high-performance, cost effective and reliable signal routing. Factory configured with a maximum of 48 I/O ports, a typical configuration is an asymmetrical 16x32. It can also be ordered with symmetrical configuration as well such as a 24x24. It's designed to replace and automate a set of multi-coupler and manual patch cord bays or switches.
The unit is available in a distributive Fan-OUT version (SGM24). The unit is able to have input have individual programmable input gain control in 1/2dB steps. Contact the factory for details on this option.
NOTE: Although it is available in standard configurations, the internal construction makes it simple to make factory builds for custom or special requirements. Our technical staff can help configure the exact system to meet your specific application. Contact the factory.
Features
High reliability GaAs switch technology
SMA connectors
Available in 50 ohm (standard)
Full access matrix with Fan-OUT
Front panel touchscreen display and control
Remote control with Ethernet 10/100/1G and Serial
LXI 10/100/1G Ethernet includes TCP/IP, SNMP, IPv6
Built-in chassis slide mounting (slides not included)
Certified CE EN61010 (LVD)
Applications
The SGM24 is wideband, and so it can be implemented to automate connectivity of signals across the whole 20-6000MHz bandpass. Instead of using patch cords and multi-couplers, the following installations may benefit from use of this product:
Ultra-Wideband Fan-OUT Switch Matrix
(20MHz-6000MHz) 16x32 or 24x24 Fan-OUT
Detailed Description
Sometimes eliminating multi-couplers, manual patch bays and patch cords, the System SG24 is a solid-state switch array specifically designed for routing and distributing ultra-wideband signals. Factory configured, the unit typically provides a symmetrical switch configuration up to 24 input ports and 24 output ports, or 16x32 (48 ports total).
The standard configuration is optionally availablle with individual programmable input gain control in 1/2dB steps. Many other options are available as your requirement demands.

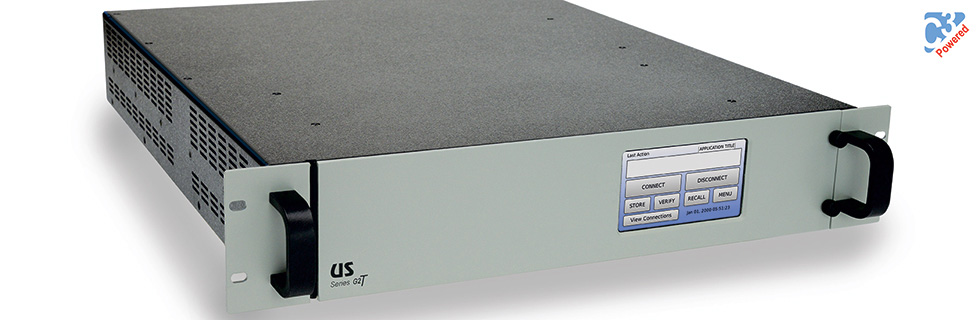

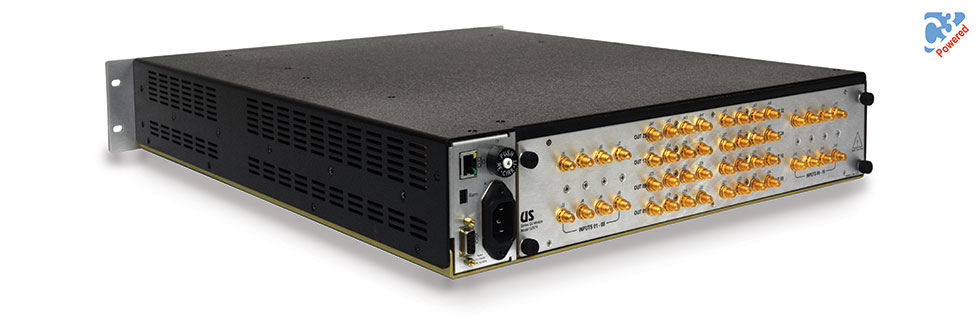

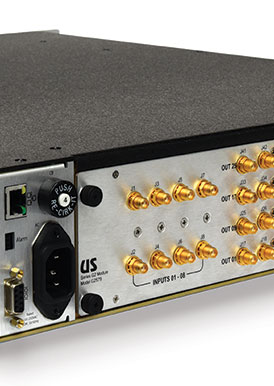

The 2RU rack mount unit is available standard with 50 ohm impedance with SMA connectors. All signal I/O connections are located at the rear panel. Designed for remote control, the built-in web browser interface and front panel touchscreen provides simple and trouble free operation.
The unit has monitored built-in redundant hot-swap power supplies and features international AC power input (DC power input optional).
The SWM24 units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:
System SGM24
A single 6'-foot power cords
Resource disc (#RDSGM24)
Hardware accessory kit
Warranty registration card
Free lifetime technical support
Free lifetime firmware updates
Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
