S2561F Example Configurations

Versatile and flexible, the S2561F unit is shown in various configurations below. Each is pictured using adapter panels for the I/O connections. These panels can be co-located with the system, located up to 60 feet away or a mix. It should be noted that a simple menu setting on the unit changes operation from stand alone, to be logically split in half (dual 128x128), or a part of a larger configuration.

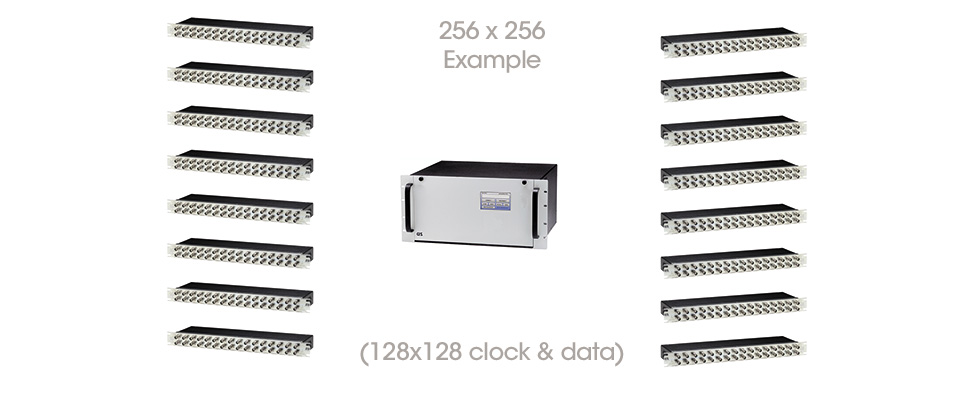

Example 1: Single S2561F full configuration as 256x256 (or dual 128x128)

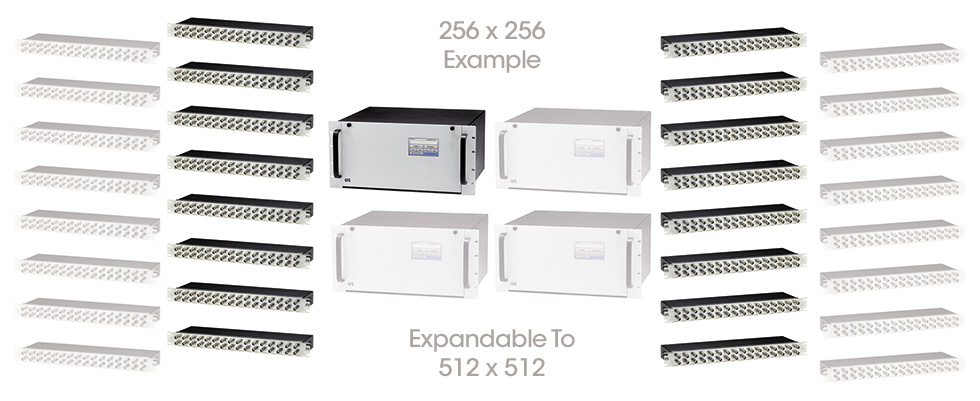

Example 2: Shows what equipment needs to be added to change 256x256 to a 512x512 (shaded)

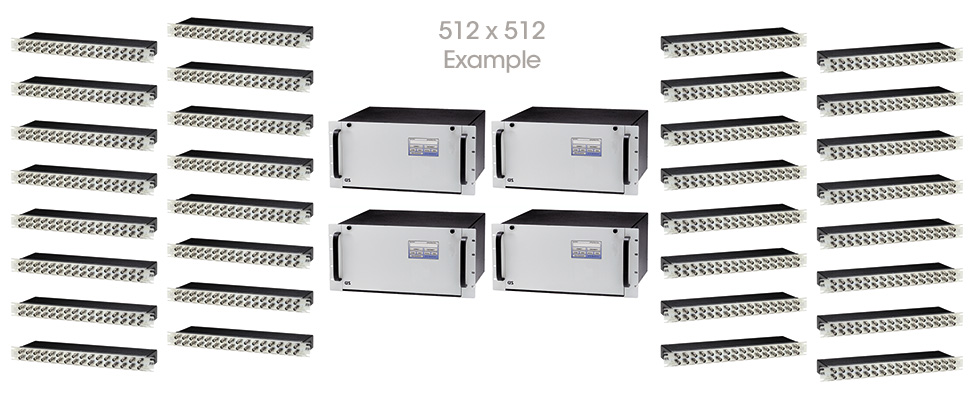

Example 3: Shows a fully functional 512x512 configuration

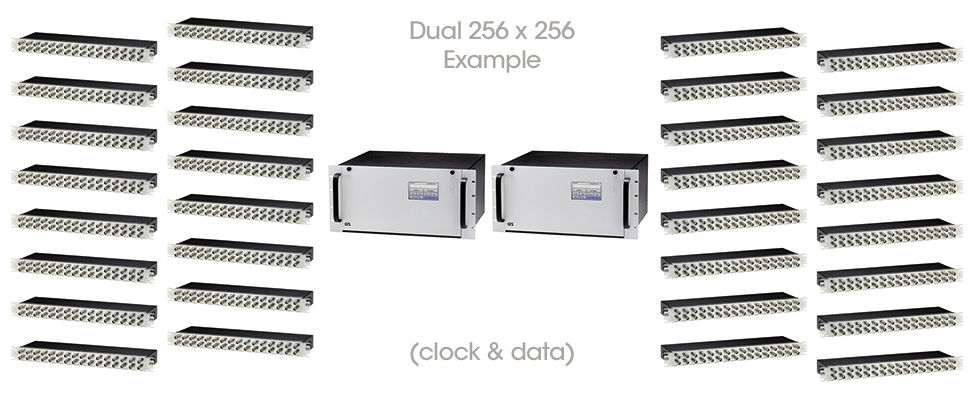

Example 4: This is a dual 256x256 for applications like Clock & Data (synchronous)
