Model 13914 is a compact hard contact general
purpose switching matrix covering the R.F. Band to
18 GHz.

The 5 in by 5 out matrix plug-in can be operated
remotely from the mainframe via two ribbon cables
allowing the switching to be located near the signal
source and loads.

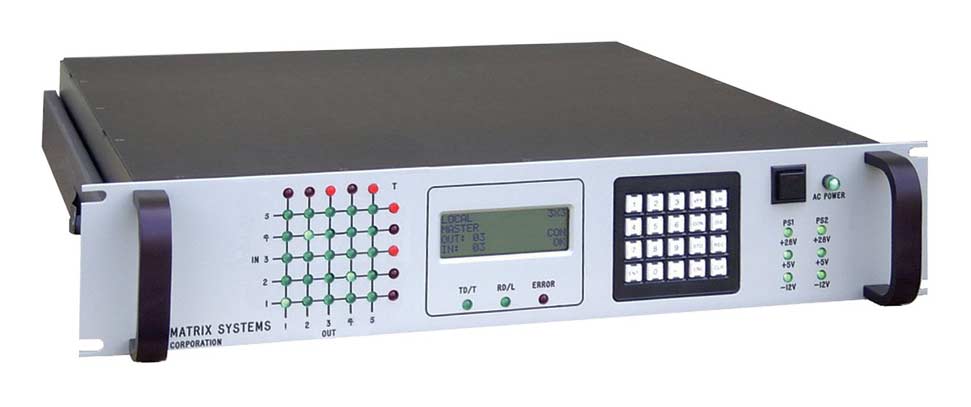

The front panel LED matrix displays shows the
current status of the signal paths through the switch and of the terminations.

The unit features redundant power supplies with
their status displayed on the front panel.

Applications:

• Switching down converted S-Band outputs
• Switching ATE to units under test
• I,G,P,L,S,C,X, and Ku Band switching
• ECL, PECL picosecond pulse switching
• CATV head end switching
• Cell band switching
• High definition T.V. switching
• Gigabit Ethernet switching
• Telecom/Datacom switching
• Hubs and routers

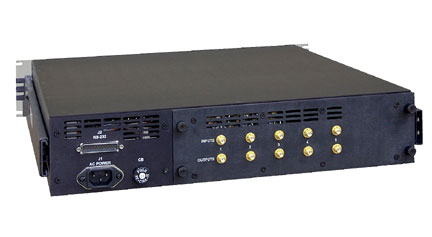

13914 back panel with connectors

Specifications:
- Matrix Size - 5 Inputs x 5 Outputs
- Matrix Type - Bi-Directional, Hard Contact
- Frequency range - DC to 18 GHz, -3 dB
- I/O Impedance - 50 Ohms
- Self terminating in 50 Ohms, 1 Watt
- Insertion Loss - <0.6dB DC-3 GHz
- Open Circuit Isolation - >110dB @ 3GHz
- Crosstalk Isolation - >109 dB @ 3GHz
- I/O Return Loss - 25 dB Mean @ 3 GHz
- I/O Terminations R.L - 25 dB Mean @ 3 GHz
- Contact rating, carry - 120 Watts @ 1 GHz, 30 Watts @18 GHz
- Contact resistance - < 100 mOhm
- Switching speed - 20 millisecond
- Contact type - Gold plated Beryllium copper
- Contact Life - 1,000,000 operations/crosspoint
- Remote Control - RS-232C
- RS-232C Interface type - DTE configured
- Control connector - DB-25P
- Mating connector - DB-25S
- I/O Signal connectors - SMA-F
- Over current protection - Magnetic circuit breaker
- Local Control - Front panel keypad control &
LC display
- Status -Crosspoint verification and LED display
- AC Power - 85-265VAC, 47-63Hz, 50W
- Cooling - Dual fans
- Operating Temp.- 0°C to +50°C
- Storage temp -20°C to +75°C
- Size - 3.50"H x 19.00"W x 18.00"D
- Humidity 90% max (non-condensing)
- Weight 22 lbs. (each system)
- Mounting Chassis TrakŪ C-300S-1-18
- Front panel color - Fed Std 595B-26440 semi-gloss gray

Options: (contact factory)
Type F connectors for CATV applications
Ethernet Interface
