Features:
Two to twenty-four throws
DC to 800MHz
RS-232C control
Low VSWR
Continuous shield continuity
Rugged machined aluminum housing
Low EMI
Switchpoints individually field replaceable
Control isolated from signal paths
Can be partitioned into multiposition sections

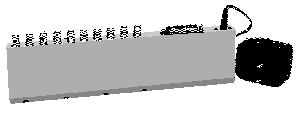

Coaxial Relay Module:
Matrix 7000-RS-232C series are designed to maintain coaxial switching continuity
over a wider range of critical and high environmental applications. The
Relay housings are constructed of precision machined aluminum alloy for
structural integrity and hard anodized for durability. All signal paths
are silver plated and the covers are gasketed for maximum EMI protection.
The basic reed switch elements are hermetetically sealed in nitrogen filled
gas envelopes and employ rhodium plated contacts to insure non-stick operation.
Applications 7000-RS-232C Series:
R.F. and I.F. signal switching
Base band video and pulse switching
Application requiring a high degree of shielding integrity
and low contact
and induced noise
Switching DS-1, DS-3, T-1, 1553B & ECL signals
Switching balanced audio
Low leakage triaxial switching
LINK TO: MODEL NUMBER ASSIGNEMENT
|
Specifications:
-
Configuration Single or double pole (2 thru 24 throws)
-
Impedance 50 ohms (75 ohms optional)
-
Frequency range (-1dB) 1310 ¸ (N - .13) MHz
(-3dB) 1760 ¸ (N + .2) MHz
-
Power +5V
-
Switching speed 1mS dry contact (3mS mercury wetted)
-
Control RS-232C
-
Control connector DB-25P
-
Signal connectors BNC - standard
(optional) Twinax, Triax, TNC, SMA or F-type
-
Operating temp -30°F to +150°F
-
Humidity 0 to 98% R.H.
-
Shock & vibration 50G's -1mS, 2G's p-p 20-2000Hz
-
Size 3.25"H x .625"W x 20.94"L (24 throws)
|
