Features:
Version 1.3 VXIbus compatibility
C-size module (single wide)
Message based control format
Wide bandwidth - 900MHz (typical)
High performance SMA signal connectors
Status feedback
Local 7-segment displays
User friendly software commands
Matrix Systems' performance and quality
SMB connectors optional

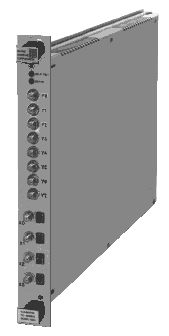

Miniaturized 900MHz Coaxial Matrix
-
The 10081A VXIbus compatible 4x8 coaxial blocking matrix is a C-size message
based unit. Being VXIbus compatible, the unit can easily interface between
the UUT and various test equipment installed in the same VXIbus enclosure.
VXIbus compatibility also insures mechanical and electrical plug-in installation
to existing VXIbus ATE Systems.
-
The wide bandwidth DC-900MHz coaxial blocking matrix features high performance
SMA connectors. Four 7-segment displays indicate status of all 32 crosspoints
within the unit. Interlocking on the Y-axis prevents connecting any two
Y-axis signal connectors together. Consult the factory for specials.
Applications:
Wide band test systems
Fast rise ECL switching
High resolution Video switching
VHF-UHF band switching
Portable field test systems
|
-
Impedance 50 ohms; optional 75 ohms
-
Frequency range DC to 900MHz
-
Input/Output isolation >50dB at 900MHz typical
-
Crosstalk isolation >35dB at 900MHz typical
-
Contact rating 28VDC, .5 Amp, 3W
-
Power requirements +5VDC at 4 Amps max
-
Signal path resistance 600mOhm
-
Signal connectors SMA
-
VXIbus keying None (no local bus)
-
Operating temp 0° to 65°C
-
Weight 3.5 lbs.
-
Size C-size module (single wide)
|
