Features:
Interconnects Matrix 70000 series coaxial relays to form Blocking Type
Matrices
Bi-directional
Push-On configuration
Machined coaxial / triaxial construction
Low EMI
All BNC female junction box available Contact factory

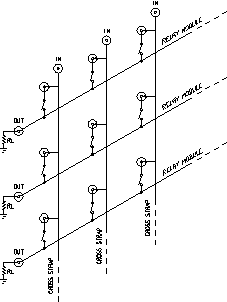

Application Note: Blocking Matrices
The 9000 series cross straps are used to configure blocking type matrices.
These type matrices are bi-directional and they are normally used in applications
that do not require more than one output to be simultaneously connected
to an input. It is possible to connect multiple ouputs to an input however
the input will be loaded accordingly. Blocking type matrices are often
used in ATE applications where a hard contact is needed.
|
