Features:
Dual full duplex
Embedded intelligent controller
Crosspoint verification
RS-232C and IEEE-488 interfaces
Crosspoint verification
Front panel keypad control
& LCD display
Recalls 40 configurations
Industry standard DA-15 type
signal connectors
System Description:
Model 13149 is a 32x32 4-level bi-directional Matrix designed to route RS-422
signals. The unit is fully buffered using standard line transmitters and
line receivers.
Any of the 32 connectors may be connected randonly to any, but no more than
one at a time, of the 32 connectors. The unit mounts in a standard RETMA
rack.
.
 |
|
13149

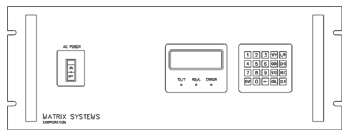

Front Panel
|
 |
|
13149

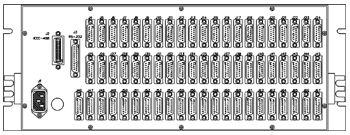

Rear Panel
|
|
| Specifications:
|
|
- Matrix size
- 32x32 4-level bi-directional |
| |
|
2 Send Pairs
and 2 Receive Pairs |
| |
- Matrix type
- Solid-state
- Signal type - RS-422 DC-10 MHz
- Contact type - Solid-state CMOS
- Signal connectors - DA-15 type or equivalent
- Remote control - RS-232C or IEEE-488 (GPIB)
- Local control - Keypad/LCD display
- Control connector - DB-25P
- Mating connector - DB-25S (supplied)
- Interface type - DTE configured
- Over Current protection - Mag. circuit breaker
- Cooling - Convection (fan assisted)
- AC power - 115VAC, ±10%, 47-63Hz, 65W
- Operating temp - 0°C to +50°C
- Storage temp - -20°C to +75°C
- Humidity - 90% max (non-condensing)
- Front panel color - semi-gloss gray
- Weight - 15 lbs.
- Size - 6.97"H x 19.00"W x 15.50"D
- Mounting Chassis-Trak® C-300S-1-14 |
Options:
(contact factory)
Special front panel
colors
Other configurations
|
