Model 13761
IRIG & RS-422 Matrix
Features:
  • 8x10x16 Balanced Pair RS-422 Matrix
  • 8x10 Coaxial IRIG* Matrix
  • RS-232C and IEEE-488 Control Interfaces
  • Front Panel Keypad Control & LC Display
  • Crosspoint verification
  • Store and Recall Configurations
  • Redundant & Pluggable Power Supplies System


    • System Description:

    Model 13761 is a 8 x 10 x 16 balanced pair matrix designed to route RD-422 matrices are fully buffered using standard RS-422 signals and a ganged 8 x 10 coaxial IRIG matrix designed to route timing signals. The RS-422 line drivers and receivers are fully buffered using standard RS-422 line drivers and receivers. Both matricies employ sold state contacts.

    All RS-422 signal connections are interfaced through standard DB-25 type connectors. The IRIG signal connections are interface through BNC connectors. The unit mounts in a standard RETMA rack via chassis slides.

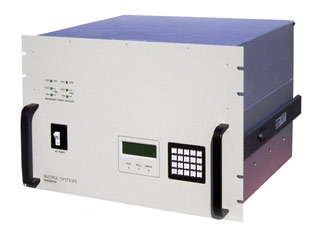

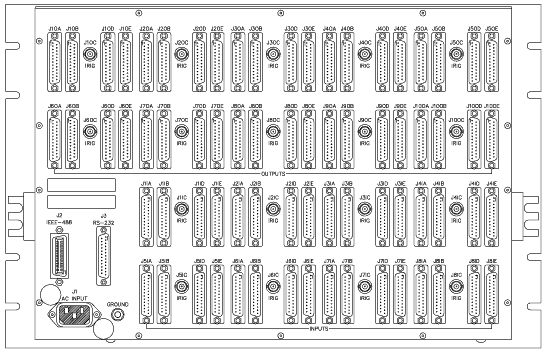

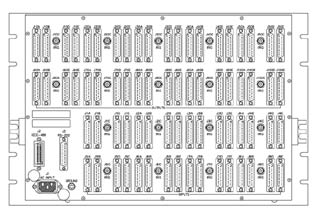

    13761 Rear View
    (click on picture for enlarge image)

    Click for 13761 Simplified Schematic

      Specifications (RS-422):
      - Matrix Configuration - 8 x10 x16 Balanced Pair
      - Signal Connectors - DB-25
      - Frequency Response - DC-10 MHz
      - I/O Impedance - 100 Ohm Nominal

      Specifications (IRIG):
      - Matrix Configuration - 8 x 10 Coaxial
      - IRIG Formats - A-H, AM & PW Coded
      - Signal Connectors - BNC
      - Frequency Response - DC>10 MHz
      - I/O Impedance - 75 Ohm Nominal

      Specifications (general):
      - Matrix type: - Bi-directional-random addressable
      - Signal connectors BNC female
      - Contact Type Solid-State CMOS
      - Remote Control - RS-232C or IEEE-488 (GPIB)
      - Local Control Keypad/LCD Display
      - Control Connectors - DB-25P (RS-232)
      57-20240-2 (IEEE-488)
      - Over Current protection Magnetic Circuit Breaker
      - AC Power - 100-240VAC, ±10%, 50-60Hz
      - Operating Temp - 0°C to +50°C
      . Storage temp: -20°C to +75°C
      - Front Panel Color - Fed Std 595B-26440 semi-gloss gray
      . Weight 40lbs.
      - Size - 19"W x 12.25"H x 15.50"D
      - Mounting - Chassis-Trak® C-300S-1-14
      * Inter-Range Instrumentation Group
