System TS202A is a precision reliability switch product specifically designed for patching and distributing instrumentation and sensor signals in a 64x64 array.

Our TS02A can automate much of your lab connectivity while eliminating errors from human patching as well as mechanical connectivity problems from continuous patch cord activity. The TS02A provides up to 64 inputs, and 64 outputs in a non-blocking full Fan-OUT array.



Features

  • Ultra-High reliability solid-state technology
  • HD26 Dsub signal connectors
  • >1M ohm differential input impedance
  • DC-200kHz frequency
  • Large signal capacity (+/-10V)
  • Web browser control panel
  • Field upgradeable FLASH
  • LXI 10/100 Ethernet , TCP/IP, SNTP, SNMP, IPv4/6
  • Command set is 488.2 compliant
  • Field configurable serial port (232C/422A/485)
  • Individual input grounding switches

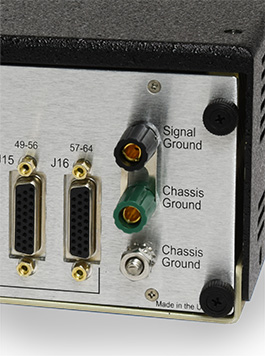

  • Isolated signal ground (with shorting terminal)
  • High contrast touchscreen display
  • Modular 2RU high chassis
  • International AC power range (DC optional)
  • Monitored redundant plug-in power supplies
  • Monitored redundant cooling fans
  • Rugged aluminum construction
  • Real-time clock with battery backup
  • Built-in scheduler
  • Optional BNC panels available
  • Certified CE EN61010 (LVD)
  • 2-Year Warranty with 5-Year warranty available
  • Applications

    Our TS202A is designed to automate connectivity of signals spanning the DC-200kHz range. Rather than using patch cords, the following installations may benefit from use of this product:

  • Automated test equipment (ATE)
  • Presure equipment
  • Shake & Bake Labs
  • Communication centers
  • Test and evaluation
  • Vibration testing

  • S24530 digital pin assignment DCE and DTE matrix system



    Precision Low Frequency 64x64 Matrix (DC-200kHz)
    Designed For Instrumentation & Sensors

    RSX4 Redundancy closeup

    Designed from scratch to improve on the legacy Precision Filters Model 4164, the TS202A uses the absolute latest in component technology. Many engineers still use manual patch cords & patch panels to interconnect sensors, recorders, scopes and other instrumentation in test & evaluation labs.

    Our TS02A can automate much of your lab connectivity while eliminating errors from human patching as well as mechanical connectivity problems from continuous patch cord activity. The TS02A provides up to 64 inputs, and 64 outputs in a non-blocking full Fan-OUT array. It includes built-in self-tests that non-invasively verifies validity of closed crosspoints (Go/No-Go), and can also perform testing on the complete array (FAT).

    This product delivers ultra-high signal performance coupled with advanced remote/manual control and monitoring with 10/100 LXI certified Ethernet port, multi-serial port, front panel control, and hot-swap redundant supplies.

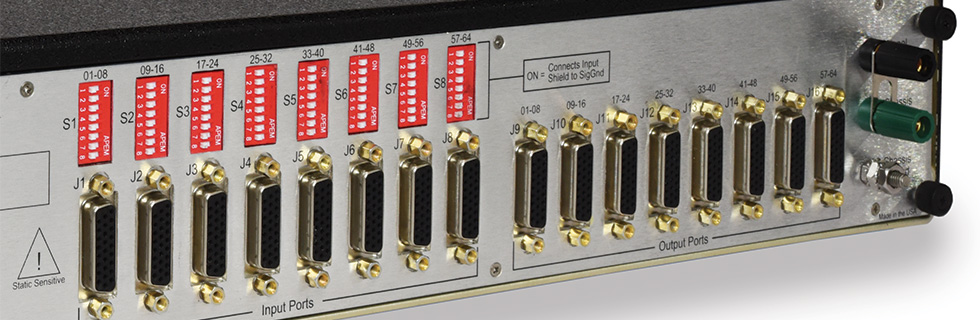

    Each input is a differential pair to help eliminate low frequency sensor noise, and each output is single-ended. Each negative input (of the input pair) can individually be switched to signal ground for application dependent needs. A DIP switch provides this function for each input depending upon your specific signal requirements.

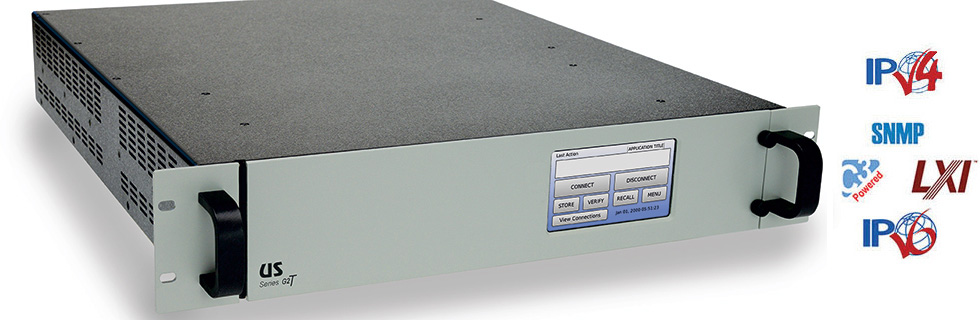

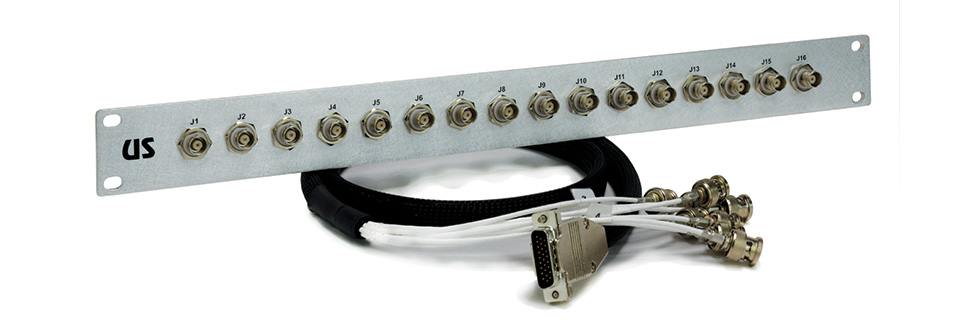

    The TS202A includes front panel touchscreen and single controller providing 10/100 Ethernet with web browser, USB port, and multi-serial. Self-monitoring redundant hot-swap power supplies can be powered by any international AC power source. Optional 1RU rack-mount isolated BNC panels are available. Customized configurations are available by contacting the factory.



    Control Software & Drivers

    RouteWarePRO Control GUI

    What's Included

    The TS202A units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System TS202A
  • One 6'-foot power cords
  • Resource disc (#RTS202A1)
  • Hardware accessory kit
  • Warranty registration card
  • Free lifetime technical support
  • Free lifetime firmware updates
  •

    Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
