System S24530A is a multi-level digital matrix for routing RS-530 type signals (or similar multi-level bidirectional digital signals) with up to 24x24 I/O's in one unit. The "A" version features an integrated touchscreen that supplants the discontinued S24530 (keypad and display).

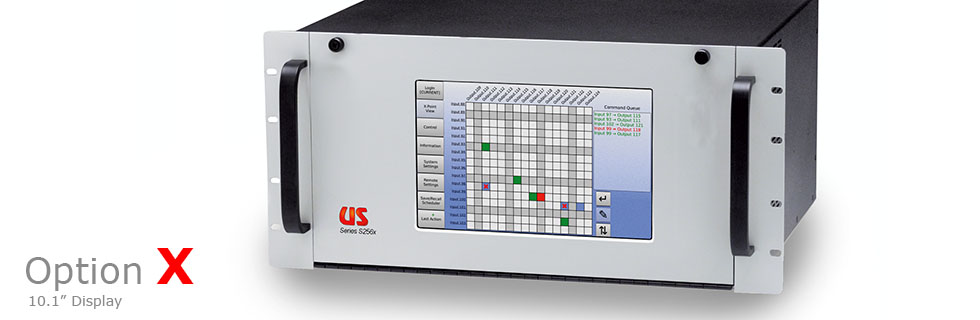

The "F" version has a standard 4.3" display while the "FX" version has a beautiful 10.1" display with enhanced features.

Intended to replace manual patch cord bays, this unit is designed for switching RS-530 type signals. Traditionally, RS-530 is a mix of differential (422) and single-ended (TTL) digital signals. Since there is no precise standard for RS-530 (and many are "custom" proprietary), there are a mix of uses and signal directions installed abroad.

Fortunately, the S24530A(X) can be easily configured by selecting the appropriate digital switch core and DTE/DCE I/O cards. The unit can be configured as small as a 3x3 matrix, to as large as a 24x24 matrix. Either the DCE or DTE axis of the matrix can be configured in increments of 3 ports. Our technical staff can help configure the exact system for your specific application.

NOTE: For a larger version, please see our 64x64 port switch: System S64530. It can be further expanded to 128x128 or larger if needed.

Features

  • High reliability all digital technology
  • Up to 50Mbps digital bandpass
  • Input and/or output terminations optional
  • DCE and DTE signal connectors (D-Sub)
  • Full access matrix with 1:1 connection or fanout
  • Expandable configuration from 3x3 to 24x24
  • Configurable with single or dual control CPUs
  • Built-in web browser
  • Remote control Ethernet, USB & serial ports
  • LXI 10/100 Ethernet with TCP/IP, SNMP, IPv4, IPv6
  • Command set is 488.2 compliant
  • Front panel color touchscreen (4.3" or 10.1")
  • Rugged 5RU high chassis (8.75”)
  • International AC power range
  • Self-monitoring hot-swap plug-in power supplies
  • Integrated rack mount design (19 inch)
  • Built-in chassis slide mounting (slides not included)
  • Certified CE EN61010 (LVD)
  • Applications

    Our S24530A(X) is designed to automate connectivity of equipment with an RS-530 port, or similar "specialized" or custom digital port.

    Rather than using patch cords, the following installations may benefit from use of this product:

  • Encryption and decryption equipment
  • Security modems
  • Ground stations
  • Telecom equipment
  • Uplink or downlink control signals
  • Computer room installations
  • Communication centers
  • Satellite installations
  • Specialized security devices

  • S24530 digital pin assignment DCE and DTE matrix system

    Similar Products

    Digital (RS-530) 24x24 Modular Switching System
    RS-530, RS-422, TTL, Clock & Data

    S24530A digital rs530 switching hotswap DCE and DTE matrix system

    Detailed Description

    Eliminating manual patch bays and patch cords, the System S24530A(X) is a digital switch array specifically designed for routing multi-level type signals such as RS-530. Fully populated, this unique unit contains 24 DTE ports that can be connected to 24 DCE ports. All RS-530 signals are routed on the DB25 connectors. The unit is configurable from 3x3 to 24x24 in independent (DCE, DTE) increments of three ports.

    The "F" version has a standard 4.3" display while the "FX" version has a beautiful 10.1" display with enhanced features.

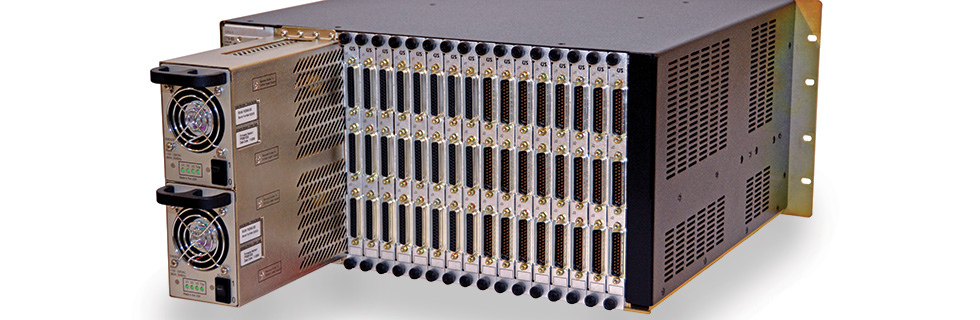

    .The 5RU rack mount unit can be populated with up to eight DCE cards and eight DTE cards, with each containing 3-ports. These cards install at the rear of the unit with the ports rear facing. All modules are secured to the unit with stainless hardware for rugged and trouble free operation.

    For less than fully populated configurations, filler plates complete the user configuration to keep the fan assisted cooling system working at top efficiency. The digital switch core cards are installed behind the hinged front panel (up to eight cards).

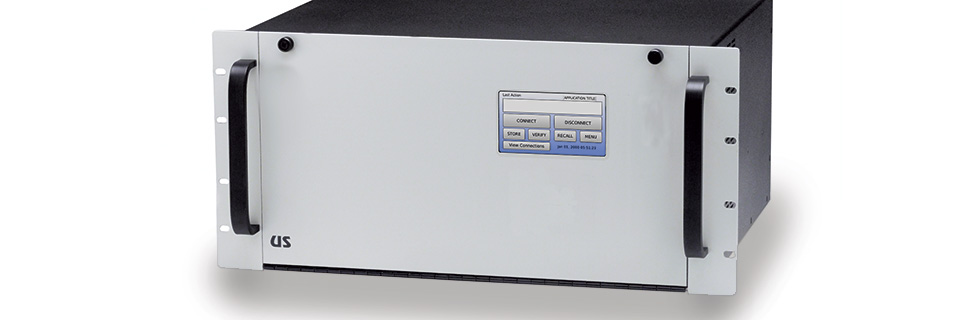

    The front panel includes a color touchscreen display with user friendly menu driven operation. The display may be pass-code locked to prevent unintentional operation. The unit can be configured with one or two (full redundant) hot-swappable plug-in control CPUs. Each CPU includes an LXI 10/100 Ethernet port (with web browser), a USB 2.0 port, and a muli-serial port (RS-232C, RS-422A & RS-485). Self-monitoring hot-swap plug-in power supplies are standard with an independent and redundant design. The unit has independent dual AC power inputs designed for any international AC power source..

    Plug-in C3 Control CPU Information

    S24530A digital rs530 hotswap DCE and DTE switch cards S24530A digital pin assignment DCE and DTE matrix system

    What's Included

    The S24530A units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System S24530A
  • Two 6'-foot power cords
  • Resource disc (#RDS24530A)
  • Hardware accessory kit
  • Warranty registration card
  • Free lifetime technical support
  • Free lifetime firmware updates
  •

    Two power cords are provided as the unit comes standard with redundant (and independent) power supplies. Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
